Overview:

Intelligent and Environmental mixer feedingsystem are widely used for conveying, storage, weighing and feeding of manykinds of raw materials, such as powders, oil and polymer, in rubber and plasticindustries. And the whole process is under intelligent control ofmicrocomputer.

Components:

     1.Carbon black and other powders’storage, weighing and conveying.

     2.Oil

     3.Polymer

     4.Microcomputer control system( informationmanagement system for rubber mixing)

     Each component above can be usedindependently or combined according to use’s requirements.

Major technical parameters:

Related internal mixer’s capacity: 50~650L

Full scale weighing value for carbon black and powder materials: 60kg, 120kg, 200kg, 300kg.

Full scale weighing value for oil materials: 10kg,、20kg,、30kg、50kg、60kg、100kg

Full scale weighing value for rubber materials: 60kg、100kg、200kg、300kg,、600kg、1000kg series

     Weighing accuracy class：Ⅲ

     Dynamic error： ≤0.2%FS

     Dosing cycle：120s/batch

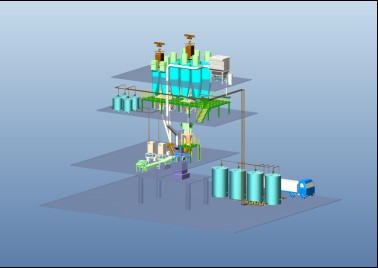

Mixer Feeding System – Carbon Black Fed Through FIBC

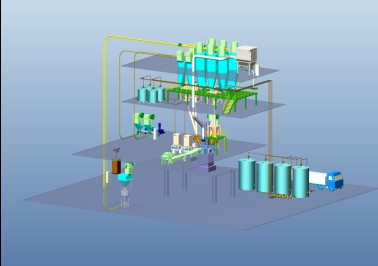

Mixer Feeding System – Carbon Black Fed Through Pneumatic Transmission
